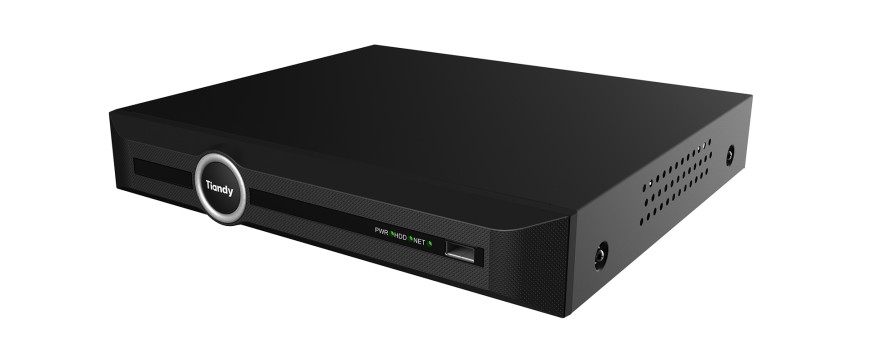

TC-R3220 416HA

Category: PoE
2HDD 20ch PSE AI NVR (16CH PoE)

09 October 2025

View 561 View



Feature

  • Up to 20-ch IP camera accesses
  • Incoming/Outgoing bandwidth: 160Mbps(AI on: 120Mbps)/80Mbps
  • S+265, H.265, S+264, H.264 video formats
  • Max. decoding capability: 16MP(30fps)×1 or 1080P(30fps)×10
  • 16-ch synchronous playback
  • Up to 10 TB capacity for each HDD
  • Simultaneous HDMI and VGA outputs
  • HDMI output at up to 4K resolution
  • 1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
  • PoE interface, 16×RJ45, 10/100 Mbps self-adaptive Ethernet port
  • S+ 265 compression eff ectively reduces the storage space by up to 75%
  • Support cloud upgrade

Specifications

General
UI Language Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French;
Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek
Power Supply 100~240V AC
Power Consumption <10W(without HDD&without PoE)
NetWeight 3.1kg
GrossWeight 4.45kg
Boundary Dimensions 440(L)284(W)48(H)mm
Package Dimensions 510(L)150(W)385(H)mm
Operating Temperature -10℃~+55℃ (+14℉~+131℉)
Operating Humidity 10%~90%RH (non-condensing)
Storage Temperature -20℃~+60℃ (-4℉~+140℉)
Package Kit Network Video Recorder*1; Screw Pack*2; Mouse*1; European Standard Power Cord*1; Ear Plate*2;
SATA Hard Disk Data Cable*2; SATA Power Cord*1; Instructions*1; Parts List*1
Video and Audio
Access Channel 20
Incoming Bandwidth 160Mbps(AI on: 120Mbps)
Outgoing Bandwidth 80Mbps
Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability 16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×3, 5MP(30fps)×4, 4MP(30fps)×5, 3MP(30fps)×6, 1080P(30fps)×10, 720P(30fps)×20, 4CIF(30fps)×20
(AI on：16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×20)
Playback Decoding Capability 16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×3, 5MP(30fps)×4, 4MP(30fps)×5, 3MP(30fps)×6, 1080P(30fps)×10, 720P(30fps)×16, 4CIF(30fps)×16
(AI on：16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16)
Third-party Camera Access ONVIF(Profi le S/T); RTSP
HDMI Output HDMI: 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz),
1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (2K)2560×1440(30Hz), (4K)3840×2160(30Hz)
VGA Output VGA: 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display Simultaneous Output:
VGA: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25
HDMI: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25
Audio Input 1-ch, 3.5mm
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, 3.5mm, using the audio input
Compression Standard
Video Compression S+265; H.265; S+264; H.264
Audio Compression G.711A; G.711U; AAC; ADPCM_D
Stream Type Video; Video & Audio
Network
Network Protocol 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP
Moblie Client EasyLive Plus (Android, iOS)
System Compatibility ONVIF(Profi le S/T/G); RTSP; CGI; SDK; P2P
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Record Playback
Multi-channel Playback 16
Record Mode Manual Recording; Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB storage device, Network
Playback Function Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay
Dual Stream Record Yes
Alarm
General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR)
Exceptions Alarm Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W
Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE
Overload; Voltage Alarm(IPC); RTC Failure; IP Address Confl ict; MAC Address Confl ict; Disk Overload
Intelligent Analytics
AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap;
Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet
Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection;
Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement;
Smart Alarm; Face Recognition; Human/Vehicle Classifi cation
AI by NVR Face Detection; Face Recognition; Tripwire; Double Tripwire; Perimeter; Smart Motion Detection
VCA Search Early-warning Search; Behavior Search; Safety Helmet Search; Thermographic Retrieval; Duty Search;
Electric Bicycle Retrieval; Face Search(Search by face attributes); Smart Motion Detection
VCA Report Heatmap; People Counting; Face Statistics
Face Detection
Face Attributes Detection Gender; Age; Glasses; Face Mask
Face Attributes Search Gender; Age; Glasses; Face Mask; Body Temp.
Face Recognition
Face Recognition Performance 1-ch(1080P) video streams or 4-ch image streams
Face Picture Library Up to 10 face libraries, up to 20000 base images
Face Picture Comparison Yes
AI Performance(AI by NVR)
Perimeter/Tripwire Performance 4-ch
Smart Motion Dection
Performance		 4-ch
Storage
HDD Capacity Up to 10 TB capacity for each HDD
Disk Group 2 Disk Group
External Port
USB 2×USB2.0
HDMI 1×HDMI(supports up to 4K resolution output)
VGA 1×VGA
Network Interface 1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
SATA 2×SATA interface
Alarm I/O 4-ch, TTL inputs, 3mA, 3.3VDC; 1-ch, relay output, 1A, 24VDC
PoE
PoE Interface 16×RJ45, 10/100 Mbps self-adaptive Ethernet port
PoE Budget 200W
Power per PoE Port 30W
Standard IEEE 802.3 af/at

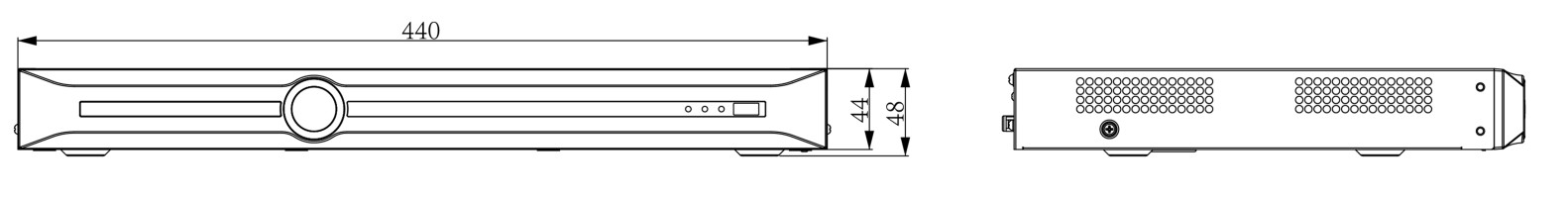

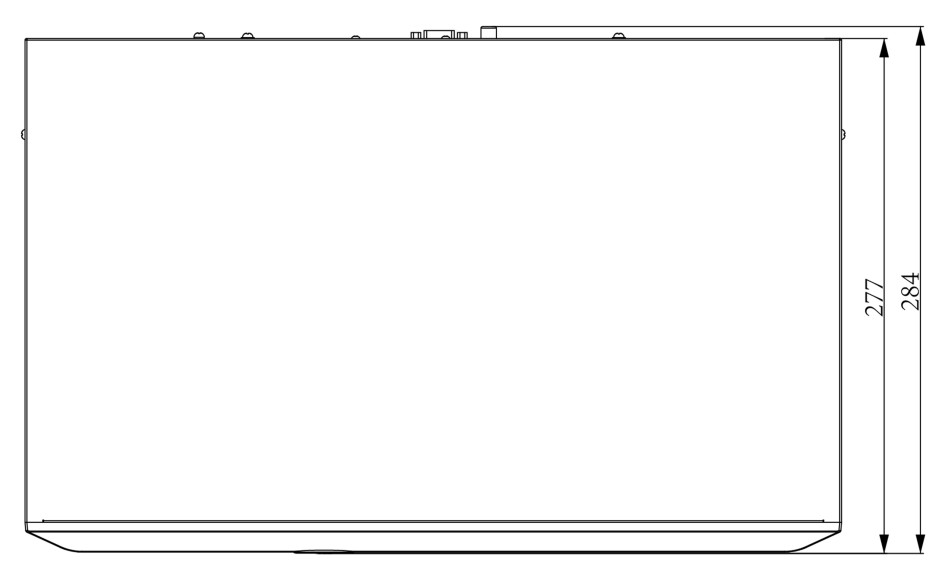

Dimensions

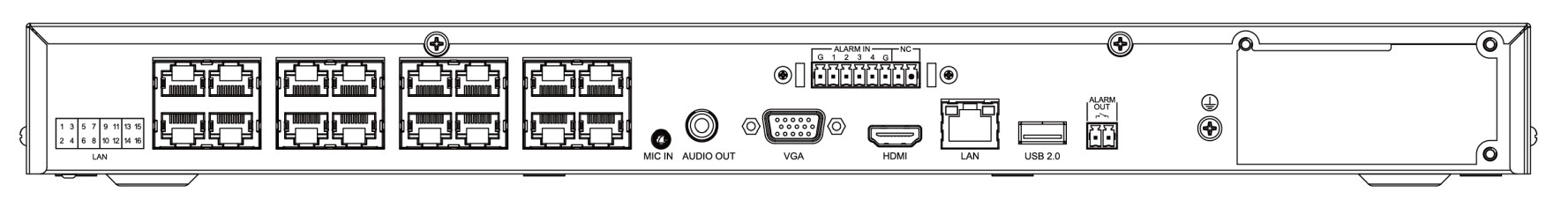

Physical Interfaces
