KEY FEATURES
System
• Linux
• English WEB management interface
Management Channels
• Max 1000 video channels
Hard Disk
• Support access to 8 hard disks
• One 4T enterprise-level hard disk is standard equipped
HDMI
• 2 HDMI decoding output
Built-in Software
• Easy7 CMS V9.2.0
Specifications
| Controller | |||
| Product | K1000 | ||
| Product Overview | The K1000 is an all-in-one machine with buiIt-in integrated management platform,streaming media middleware, and Tiandy streaming storage software. It canmanage up to 1000 channels | ||
| System Disk | 64G SSD | ||
| Memory | 24G | ||
| Processor | 64-bit multi-core processor | ||
| Data Disk | Support 2.5 "or 3.5" SATA; A standard 4T enterprise-class hard disk is used as a datadisk (occupying one disk sIot) and cannot store videos, in SATA 1 port.Each of the other 7 disk sIots supports a maximum of 18 TB hard disks. | ||
| Operating System | openEuler-22.03-LTS-SP1 | ||
| Disk Number | 2U/8 | ||
| Array Type | Support Raid 0/1/5/6/10/50/60 | ||
| Memory Channel Number | •Simultaneous image storage and video storage: Video storage performancesupports up to 180 channeIs (2Mb, H265)•Use only video storage; Maximum video storage performance 200 channels (2Mb,H265) | ||
| Software | |||
| Pre-installed Software | Easy7_CMS_V9.2.0 | ||
| Sub System | Video preview, Video playback, Video on the wall, Video preview (WEB version),Video playback (WEB version), Access Control, Vehicle Management,Face Application, Passenger Flow Management, Attendance Management, etc. | ||
| System Bandwidth | Access bandwidth:Face model 360M; Surveillance model 512MForwarding bandwith:Face model 400M; Surveillance model 512M | ||
| NTP Setting | Support NTP time synchronization | ||
| External Interface | |||
| Network Interface | 4 | ||
| String Interface | 2 (RS-485); 1 (RS-232) | ||
| USB Interface | 2 USB2.0; 2 USB 3.0 | ||
| HDMI Interface | 2 | ||
| Alarm Input/Output | 8/4 | ||
| General Norm | |||
| Power Supply | AC100V～240V; 50Hz | ||
| Quantity of Power Supply | 1 (550W) | ||
| Power Consumption | Power rating: 550W | ||
| Operating Temperature | 5°C~40°C | ||
| Operating Humidity | 10%~90% (No Condensation) | ||
| Dimension | 535mm (L) × 446mm (W) × 88. 5mm (H) | ||
| Data Classification Calculation Rule K1000 Classification | |||
| Network bandwidth | Uplink bandwidth | 1000 |
Data Capacity Index |
| Number of points | 1 point/server | 1000 | |
| Number of encoding devices | 1000 | ||
| Number of middleware servers |
600 | ||
| Number of decoders | 50 | ||
| Access point of the master control middleware |
1000 | ||
| User number | The platform comes with 3 system users + supports adding more users |
5003 | |
| Organization Area |
1000 |
||
| Number of staff |
5000 |
||
| Customer flow camera | 400 | ||
| Car brake | 10 | ||
| Self-developed PAD | MQTT is installed with the master control service, but cannot be mixed with other pads |
100 | |
| Door | 120 | ||
| Face vehicle camera | 75 | ||
| Duration | 300 | 300 | |
| Years | 1 year | 0.25 | |
| Uplink bandwidth | 360 | ||
| Downlink bandwidth | 360 | ||
| Storage duration | Storage duration | 91 | |
| Resident User | 0.1 * total number of users | 500 | |
| Number of PAD+ card readers |
1/door | 120 | |
| Number of vehicles | 0.2/total number of people | 1000 | |
| Face mount | 0.5/total number of faces and vehicles |
37.5 | |
| Vehicle bayonet | 0.5/total number of faces and vehicles |
37.5 | |
| Daily personnel entry and exit records |
2 times/person/day | 10000 | |
| Daily vehicle entry and exit records |
1 time/car/day | 1000 | |
| Face PAD Recording | 4 times/day/total number of people |
20000 | |
| Access controller events | Access control records | 7 | |
| Face camera recording | 130 times/day/face card slot | 4875 | |
| Vehicle passing record | 59 times/day/vehicle checkpoint |
2213 | |
| Customer flow camera recording |
45/passenger flow cameras | 18000 | |
| alarm record | 1/total number of devices | 1000 | |
| Operation log | 120 items/day/permanent user |
0 | |
| Vehicle control alarm | Article/day | 20 | |
| Map points | --indivual | 1000 | |
| Native decoding performance (output resolution) |
4 | ||
| Video storage performance | 2M/point | 180 | |
| Video forwarding performance |
2M/point | 180 | |
| Target library | 100 | ||
| Face recognition alarm | 75 | ||
| Data Classification Calculation Rule K1000 Classification | |||
|
i5-8500 16G Soft Decoding |
1080p/4096/H265 | 5 |
Plug-in |
| 720p/4096/H.265 | 8 | ||
| 4CIF/1024/25/H.265 | 22 | ||
| 8MP(3840*2160)/8192/H265 | 1 | ||
| 1080p/4096/H.264 | 6 | ||
| 720p/4096/H.264 | 12 | ||
| 4CIF/1024/25/H.264 | 27 | ||
| Does not support hard decoding |
- | - | |
|
Intel i7-12700 16G NVIDAGeForce RTX 3050 OEM SoftDecoder |
1080p/4096/H265 | 15 | |
| 4CIF/1024/H.265 | 49 | ||
| CIF/1024/H.265 | 104 | ||
| 2K/4096/H.265 | 9 | ||
| 1080p/4096/H.264 | 34 | ||
| 4CIF/1024/H.264 | 128 | ||
| CIF/1024/H.264 | 256 | ||
| 2K/4096/H.264 | 22 | ||
| Data Classification Calculation Rule K1000 Classification | |||
|
Client configuration i5-950016G video preview (using CPUfor decoding) Google versionsbelow 9.0 support thisperformance |
Main stream/fixed bitrate/1080p/2048/25/H.26 5 |
4 |
No Plug-IN |
| Main stream/fixed bitrate/720p/2048/25/H.265 |
8 | ||
| Main stream/fixed bitrate/1080p/2048/25/H.26 4 |
10 | ||
| Main stream/fixed bitrate/720p/2048/25/H.264 |
16 | ||
| Main stream/variable bit rate/1080p/2048/25/H.265 |
5 | ||
| Main stream/variable bit rate/720p/2048/25/H.265 |
10 | ||
| Main stream/variable bit rate/1080p/2048/25/H.264 |
12 | ||
| Main stream/variable bit rate/720p/2048/25/H.264 |
16 | ||
| Sub-stream/fixed bit rate/4CIF/2048/25/H.265 |
16 | ||
|
Client configuration i5-9500 |
Main stream/variable bit rate/1080p/2048/25/H.265 |
1 | |
| Main stream/variable bit rate/720p/2048/25/H.265 |
3 | ||
| Main stream/variable bit rate/1080p/2048/25/H.264 |
10 | ||
| Main stream/variable bit rate/720p/2048/25/H.264 |
16 | ||
| Sub-stream/fixed bit rate/4CIF/2048/25/H.265 |
5 | ||
| Data Classification Calculation Rule K1000 Classification | |||
| Simultaneous online users operate once every 30-60 seconds |
Concurrent Online Users | 50 |
Pressure performance index(standard value) |
| The continuous platform comes with 3 system users + supports adding S number of users to alarm concurrently (face/passing car (control alarm), event alarm and other data) |
10 pieces/s | 10 | |
| The continuous platform comes with 3 system users + supports adding users S/60 intervals*face pad |
Face pad/duration | 1.7 | |
| The continuous platform comes with 3 system users + supports adding users S/90 intervals* face vehicle checkpoints |
Face and vehicle checkpoints/duration |
0.8 | |
| Continuous platform comes with 3 system users + supports adding users S/100 intervals* passenger flow camera |
Passenger flow camera/duration |
4 | |
| The continuous platform comes with 3 system users + supports adding users in S/90 intervals* access control card reader and pad |
Access card reader and pad//Duration |
1.33 | |
| Data Classification Calculation Rule K1000 Classification | |||
|
Client configuration i5-950016G video playback (usingCPU for decoding) |
Main stream/fixed bitrate/1080p/2048/25/H.26 5 |
4 |
No-Plug-In |
| Main stream/fixed bitrate/720p/2048/25/H.265 |
8 | ||
| Main stream/fixed bitrate/1080p/2048/25/H.26 4 |
10 | ||
| Main stream/fixed bitrate/720p/2048/25/H.264 |
16 | ||
| Main stream/variable bit rate/1080p/2048/25/H.265 |
5 | ||
| Main stream/variable bit rate/720p/2048/25/H.265 |
10 | ||
| Main stream/variable bit rate/1080p/2048/25/H.264 |
12 | ||
| Main stream/variable bit rate/720p/2048/25/H.264 |
16 | ||
| Sub-stream/fixed bit rate/4CIF/2048/25/H.265 |
16 | ||
| Data Classification Calculation Rule K1000 Classification | |||
|
Client configuration i5-950016GVideo Preview(Use CPUfor decoding) Edge browser(version 107) |
Main stream/fixed bitrate/1080p/2048/25/H.26 5 |
1 |
No-Plug-In |
| Main stream/fixed bitrate/720p/2048/25/H.265 |
2 | ||
| Main stream/fixed bitrate/1080p/2048/25/H.26 4 |
4 | ||
| Main stream/fixed bitrate/720p/2048/25/H.264 |
7 | ||
| Main stream/variable bit rate/1080p/2048/25/H.265 |
1 | ||
| Main stream/variable bit rate/720p/2048/25/H.265 |
3 | ||
| Main stream/variable bit rate/1080p/2048/25/H.264 |
10 | ||
| Main stream/variable bit rate/720p/2048/25/H.264 |
16 | ||
| Sub-stream/fixed bit rate/8MP/2048/25/H.265 |
5 | ||
|
Client configuration i5-950016G video playback (usingCPU for decoding) Edgebrowser (version 107) |
Main stream/fixed bitrate/1080p/2048/25/H.26 5 |
1 | |
| Main stream/fixed bitrate/720p/2048/25/H.265 |
2 | ||
| Main stream/fixed bitrate/1080p/2048/25/H.26 4 |
4 | ||
| Main stream/fixed bitrate/720p/2048/25/H.264 |
7 | ||
| Data Classification Calculation Rule K1000 Classification | |||
| The continuous platform comes with 3 system users + supports adding users S/180 intervals*gate |
Brake/Duration | 0.06 |
Pressure performance index(standard value) |
| Concurrent login users 6S login lasts 30 seconds each time |
200 users | No permanent | |
| An average of 45 seconds per operation |
Concurrent Online Users | 40 | |
| Number of alerts per second | 15 pieces/s | 15 | |
| Face pad image upload times per second |
Face pad/duration | 10.0 | |
| Number of reports per second from vehicle checkpoints with facial features |
Face and vehicle checkpoints/duration |
12.5 | |
| Number of reports per second from passenger flow cameras |
Passenger flow camera/duration |
8 | |
| Access control report number per second |
Access card reader and pad//Duration |
5 | |
| Number of brake reports per second |
Brake/Duration | 1 | |
| Number of concurrent users logging in per second |
200 users | 4 | |
| Lightweight file storage | 15M/S, 25 pictures/second | 15M/S, 25 pictures/second |
File storage metrics |
| Decoding performance | Local decoding supports 4- channel 1080P |
4 | |
| Total number of log records | 1600000 |
Historical data capacityindicators |
|
| Total number of alarm records | 4000000 | ||
| Total number of entry and exit records |
800000 | ||
| Total number of vehicle passing records |
160000 | ||
| Non-motor vehicle passing record |
160000 | ||
| Alarm control | 4000 | ||
| Attendance data | 1600000 | ||
| Total number of passenger flow camera records |
80000 | ||
| Face alarm | 200000 | ||
| Face capture | 400000 | ||
| Total amount of data | 10000000 | ||
DIMENSIONS

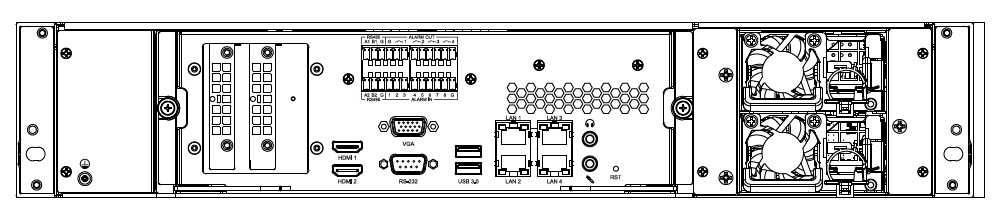

Physical Interfaces
