KEY FEATURES
Specifications
| Camera | |
| Image Sensor | Panorama:1/1.8"CMOS Detail:1/1.8"CMOS |
| Min. Illumination | Panorama:0.0004lux Detail:0.001lux |
| Shutter Time | 1s~1/100000s |
| Day& Night | IR-cut filter with auto switch (ICR) |
| Wide Dynamic Range | Panorama:DWDR Detail:120dB |
| Lens | |
| Focal Length | Panorama:2.8mm Detail:5.7mm～359mm |
| Optical Zoom | Panorama:N/A Detail:63X |
| Digital Zoom | Panorama:N/A Detail:16X |
| Zoom Speed | Panorama:N/A Detail:<8s |
| Aperture Range | Panorama:F1.0 Detail:F1.63~F4.94 |
| Field of View | Panorama:180°±10°(H) Detail:60°～1.5°(H); Panorama:90°±10°(V) Detail:35.5°～0.87°(V); Panorama:N/A Detail:67.5°～1.77°(D) |
| Focus Control | Panorama: N/A Detail:Auto/Semi-auto/Manual |
| Iris Control | Panorama:Fixed Detail:Auto |
| Close Focus Distance | Panorama:200mm Detail:1000mm~3000mm |
| DORI Distance | Panorama: Detect:63m Observe:25m Recognize:12m Identify:6m Detail: Detect:3800m Observe:1508m Recognize:760m Identify:380m |
| Pan&Tilt | |
| Pan Range | Panorama:N/A Detail:360° |
| Tilt Range | Detail:-21°～90° (Default -13°～90°) |
| Tilt Speed | Detail: Manual Speed:0.1°～120°/s Preset: 180°/s |
| 3D Position | Yes |
| Preset | 500 |
| Cruise | 16, up to 32 presets per cruise |
| Scan | 8 |
| Pattern | 8, each with 600s memory or 1000 orders |
| Scheduled Task | Preset、Cruise、Scan、Pattern |
| North Point | Yes |
| Power-off Memory | Yes |
| Preset Freezing | Yes |
| Illuminator | |
| IR LEDs | Panorama: N/A Detail:11 |
| IR Distance | Panorama: N/A Detail:300m |
| Wavelength | Panorama: N/A Detail:850nm |
| IR Irradiation Angle | Panorama:N/A Detail:Adjustable by Zoom |
| White LEDs | Panorama:N/A Detail:2 |
| Whitelight Distance | Panorama:N/A Detail:30m |
| Red and blue alarm flash | Yes |
| Laser | Panorama:N/A Detail:6 |
| Laser Distance | Panorama:N/A Detail:500m |
| Compression Standard | |
| Video Compression | Panorama:S+265/H.265/H.264/M-JPEG Detail:S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | Panorama:32Kbps~16Mbps Detail:32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Sampling Rate | 8KHz/32KHz/48KHz |
| Image | |
| Max. Resolution | Panorama:5520×2400@25fps Detail:2560×1440@25fps |
| Mainstream | Panorama: PAL:25fps(5520×2400, 4096×1800, 3840×1680, 2784×1200) NTSC:30fps(5520×2400, 4096×1800, 3840×1680, 2784×1200) Detail: PAL:25fps(2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:30fps(2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Substream | Panorama: PAL:25fps(2048×896, 1280×560, 704×320) NTSC:30fps(2048×896, 1280×560, 704×320) Detail: PAL:25fps(704×576, 704×288, 352×288, 640×360) NTSC:30fp(704×480, 704×240, 352×240, 640×360) |
| Third Stream | Panorama: PAL:25fps(1280×560) NTSC:30fps(1280×560) Detail: PAL:25fps(704×576, 704×288, 352×288, 640×480) NTSC:30fps(704×480, 704×240, 352×240, 640×480) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| White Balance | Yes |
| ROI | Panorama: 7 Fixed Areas for Both Main and Sub Stream Detail 7 rectangular 3D fixed focus areas, supporting 1 rectangular dynamic tracking ROI |
| EIS | Panorama:N/A Detail:Yes |
| OSD | 5 regions(Each region can have a maximum of 127 characters,up to 5 lines); Panorama: 16*16/24*24/32*32/48*48/64*64/72*72/96*96/128*128/adaptable size Detail: 16*16/24*24/32*32/48*48/64*64/96*96/adaptable size; Vector/Lattice |
| Defog | Yes |
| Flip | Panorama:Normal Detail:Normal/Inverted Flip |
| Regional Exposure | Panorama:N/A Detail:Yes |
| Regional Focus | Panorama:N/A Detail:Yes |
| Demist | Yes |
| Privacy Mask | Panorama:8 regions Detail:24 regions |
| Feature | |
| Alarm Trigger | Panorama:Motion Detection Detail:Motion Detection; Panorama:N/A Detail:Mask Alarm; Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Event Input,Event Output; Network cable disconnected |
| Linkage Method | send email; trigger sound; trigger warmlight; trigger recording; trigger capture; notify surveillance center |
| Video Analytics | Panorama:Human/Vehicle Classification Detail:Human/Vehicle Classification; Panorama:Tripwire Detail:Tripwire; Panorama:Double Tripwire Detail:Double Tripwire; Panorama:Perimeter Detail:Perimeter; Panorama:N/A Detail:Object Abandon; Panorama:N/A Detail:Object Lost; Panorama:Heatmap Detail:N/A; Panorama:N/A Detail:Loitering; Panorama:N/A Detail:Running; Panorama:N/A Detail:Parking; Panorama:N/A Detail:People Counting; Panorama:N/A Detail:Crowed; Panorama:N/A Detail:Safety Helmet Detection; Panorama:N/A Detail:On Duty Detection; Panorama:N/A Detail:Video Abnormal; Panorama:N/A Detail:Audio Abnormal |
| Early Warning(EW) | Early Warning(EW) |
| Auto-Tracking | Auto-Tracking |
| Face Mode | Panorama:N/A Detail:Capture facial images |
| Network | |
| ANR | ANR |
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS; SSL; 802.1x; QoS; IPv4; IPv6; PPPOE; Unicast; Multicast; ARP; RTP; SRTP; RTSP; FTP; SFTP; NAS; PING |
| System Compatibility | ONVIF Profile S/T/G/M; CGI; RTMP |
| Remote Connection | ≤7 |
| User/Host | Up to 32 users. 4 user levels |
| Client | Easy7 Smart Client |
| Interface | |
| Communication Interface | 1*RJ45 10M/100M/1000M self adaptive Ethernet port |
| Audio (In/Out) | 1*Input Impedance 1kΩ,2.0~2.4Vp-p; 1*Output Impedance 600Ω |
| Alarm (In/Out) | 8,Switching; 2,Switching,Voltage≤DC24V,Current≤1A |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| RS-485 | RS485 |
| Electronic Compass | Yes |
| GPS/BDS | Yes |
| General | |
| Web Client Language | 17 languages Simple Chinese/English/Traditional Chinese/Spanish/Italian/ Korean/Turkish/Russian/Thai/ Polish/French/Dutch/ Hebraism/Vietnamese/Arabic/German/Ukrainian |
| Operating Temperature | -40℃～70℃(IR OFF) -40℃～40℃(IR ON) |
| Operating Humidity | 0-95% |
| Storage Temperature | -40℃～70℃ |
| Storage Humidity | 0-95%(non-condensing) |
| Power Supply | DC36V±25% |
| Protection | Surge protection 6000V; IP66 |
| Material | Metal |

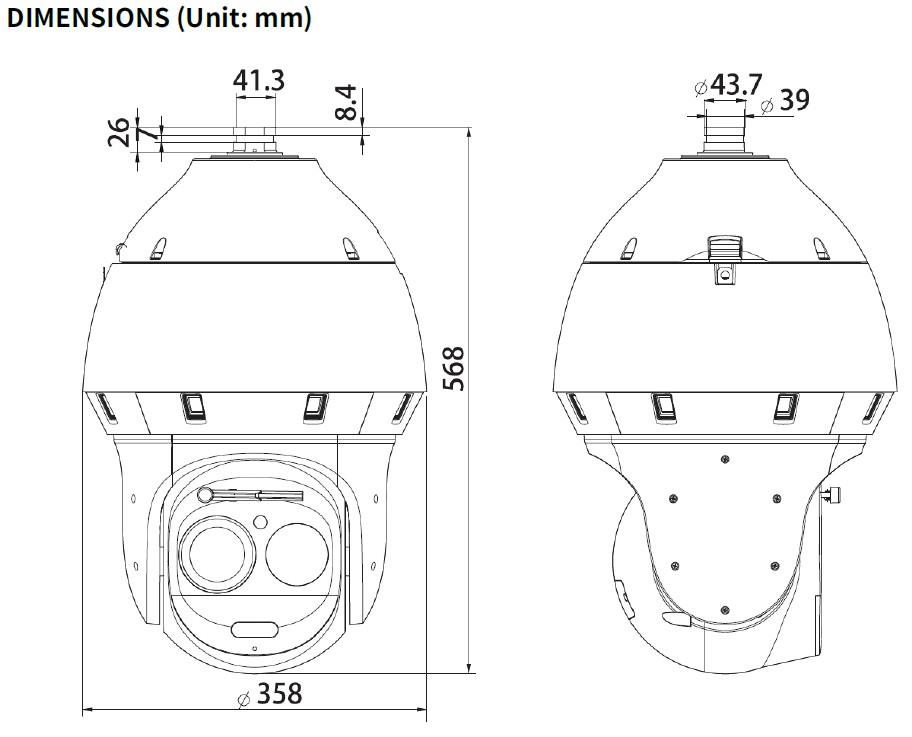

| Boundary Dimensions | 358mm(D)x568mm(H) |
| Package Dimensions | 565(L)*485(W)*750(H)mm |
| GrossWeight | 21.7kg |
| NetWeight | 14.8kg |
